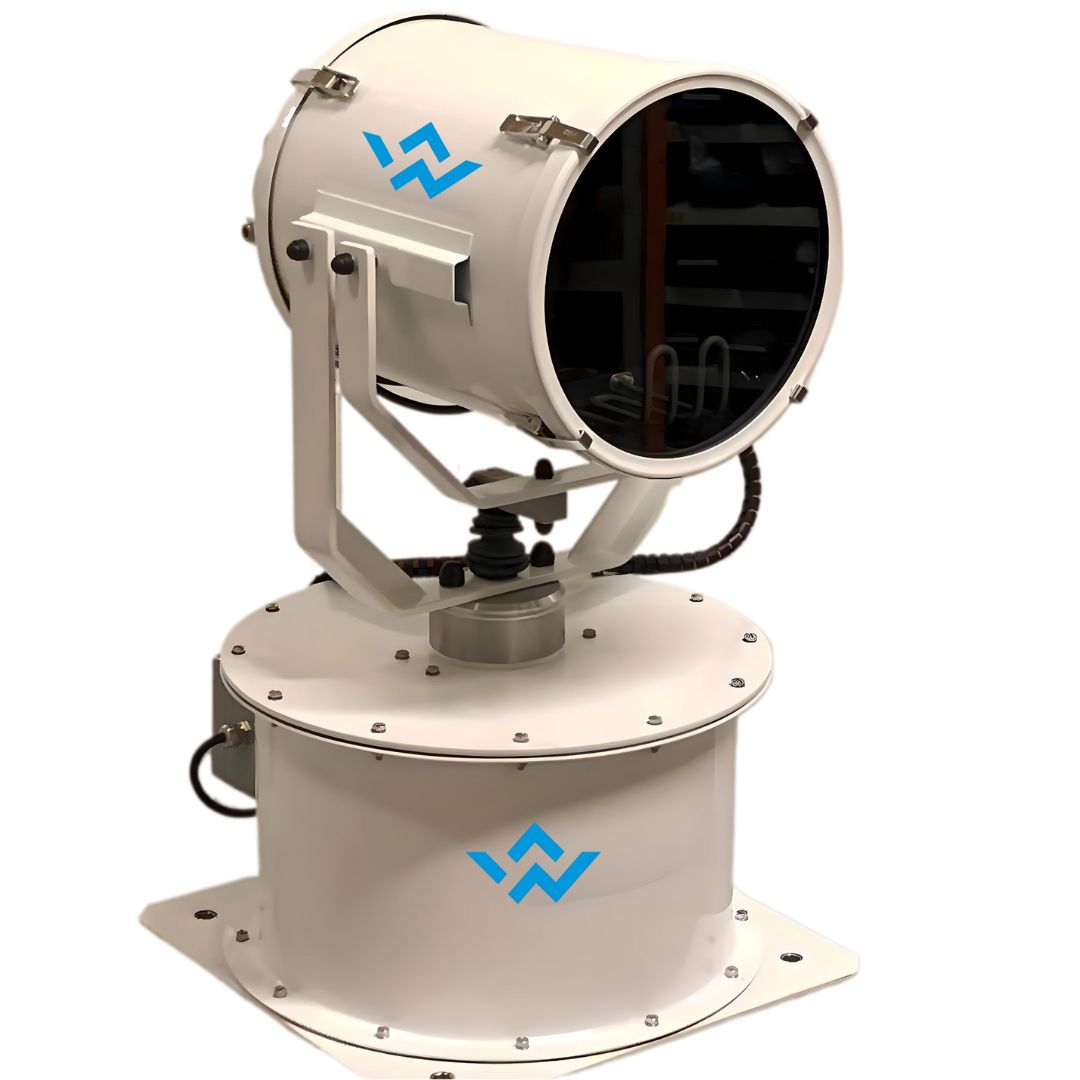

UAVX SX3000WA 3000W AUTOMATIC SEARCHLIGHT
UAVX Automation searchlights are all designed for rough environments. It is the policy of UAVX to pro-vide products and services that meet the highest standards of quality in the industry.
• Applicable to sub-zero temperatures of-15°C .
• Self regulating anti condensation heater in drum.
• Xenon “Ice Searchlight” can through a unique color distribution rapidly detect ice and illuminate surface objects.
• Its unique long beam range makes it in many areas of application a better choice than halogen.
• Electromagnetic compability (EMC).
• Remote controlled motorfocus.
• Self-regulating heating in motorhouse.
• May be operated from control panels.
Feature | Specification |
Model | UAVX SX3000WA |
Bulb Type and Power | 3000W high-intensity spherical mercury xenon light |
Ambient Temperature | Operates between -15°C and +50°C |
Rated Voltage | Compatible with 110V/220V AC or DC |
Temperature Rise Limit | Maximum rise of 80°C |
High Voltage Test | Tested at 3000V for 1 minute |
Insulation Resistance (Normal) | Minimum of 50 MΩ |
Insulation Resistance (Damp) | Minimum of 1 MΩ |
Reflector Focal Distance | 180 mm |
Scattering Angle | 2° |

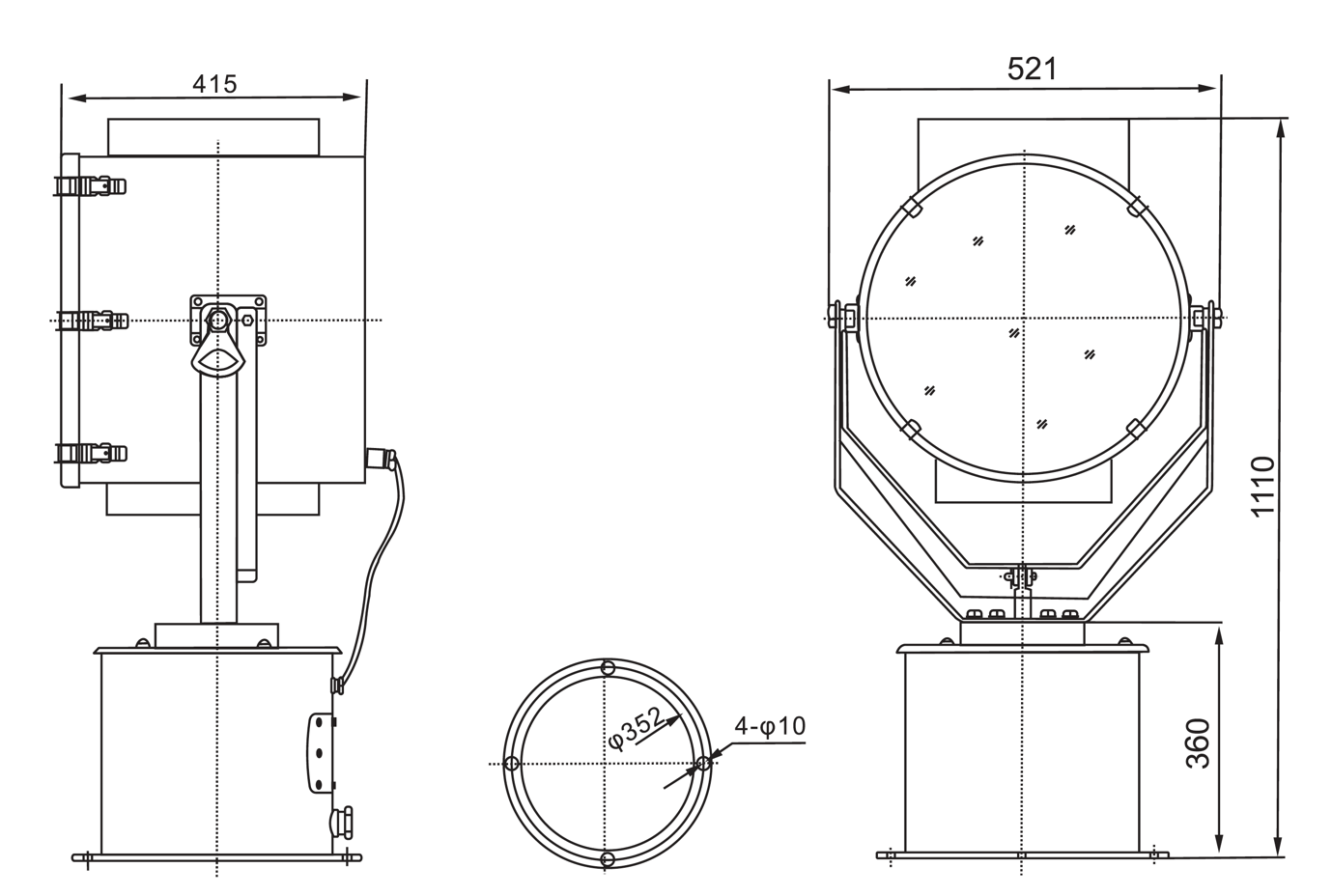

Dimensions | 415 mm (W) x 521 mm (D) x 1110 mm (H) |
Weight | Maximum 98 kg |
P/T-Type | FL52/230VAC |
Horizontal Speed | 5 °/sec |
Vertical Speed | 2.4 °/sec |
Horizontal Rotation | ±185° |
Vertical Rotation | ±34° |
Material | Stainless steel |
Control Unit | RCU-E |
Wattage | 3000 W |
Colour | RAL 9016 |
Surface Finish | Powder coated |
Frequency | 50/60 Hz |
Protection Class | IP56 |
Operational Areas | Suitable for outdoor use |
Reflector | Made of glass |
Focusing Mechanism | Electric |
Light Source | Xenon lamp |
Light Source Included | Yes |
Luminous Flux | 180,000 lumens |
Average Lamp Life | 2,400 hours |
Light Activation | Immediate |
Range (1 lux) | 11,500 meters |
Divergence | 2.7° |
Power Supply | PSUX-E: 3000W outdoor |
Cable Gland Type | M 25 x 1.5 |
Cable Gland Material | Brass |
Cable Type | Non-armoured |
Cable Diameter (Min) | 8 mm |
Cable Diameter (Max) | 10.5 mm |
Globe Colour | Clear |
Mounting Orientation | Upside |
